TauWeld EDGE Series 225J — Soft Spot Technology, Latest Generation
The TauWeld EDGE Series 225J is a professional benchtop laser welder built for precision jewelry work, dental labs, and high-repeatability production. Featuring Soft Spot technology, it delivers smoother, more controlled energy distribution for cleaner welds, improved cosmetic finish, and greater confidence on delicate components.
- Soft Spot Technology: smoother energy profile for controlled penetration and cleaner results
- 225J output: powerful welding capability with precision control for demanding shop use
- Precision workflow: optimized for repeatability, comfort, and high-quality weld aesthetics
110V ONLY — plug-and-play in the United States with no transformer required
Manufactured in Italy and exclusively distributed in the U.S. by Pepetools.
Key Features
Soft Spot Technology
A smoother, more forgiving energy profile that helps reduce harsh penetration and improves surface finish— especially on thin, delicate, or high-value components.
Power + Control
Up to 225J with adjustable pulse time and frequency, plus motorized spot control for precise, repeatable welds in production environments.
Operator-Focused Workflow
Built for comfort and speed with a 7" color touchscreen and internal joystick control—so you spend less time navigating menus and more time welding.
Overview
The TauWeld EDGE Series 225J is designed to deliver maximum precision in high-intensity work environments. It strikes a rare balance of performance, operational comfort, and versatility—ideal when weld consistency and aesthetic quality matter just as much as strength.
From everyday jewelry repairs to production-level fabrication, the EDGE platform is built for repeatability and high-quality results in a compact, professional benchtop format. Tauweld instruction manual can be found here
Soft Spot Technology (Included)
Soft Spot technology is an advanced beam-shaping feature that helps deliver smoother, more controlled energy transfer at the weld site. By softening the energy profile, it supports cleaner welds with better surface appearance and more predictable control—particularly valuable for delicate assemblies and visible jewelry welds.
- Cleaner cosmetic finish on visible welds
- More controlled penetration for thin sheet, wire, and prongs
- Reduced thermal stress to help minimize distortion and surface disruption
- Greater repeatability across multiple welds and operators
Ideal For
Jewelry Workshops
- Repairs, sizing, and micro-joins
- Prongs, bezels, chain components
- Production-level repeatable welds
Dental Labs
- Frameworks and appliance components
- Precise spot welding and assemblies
- Consistent results for lab workflows
Industrial / R&D
- Micro-mechanical parts and tooling
- Repeatable, high-quality weld output
- Precision departments and prototyping
Controls & Workflow

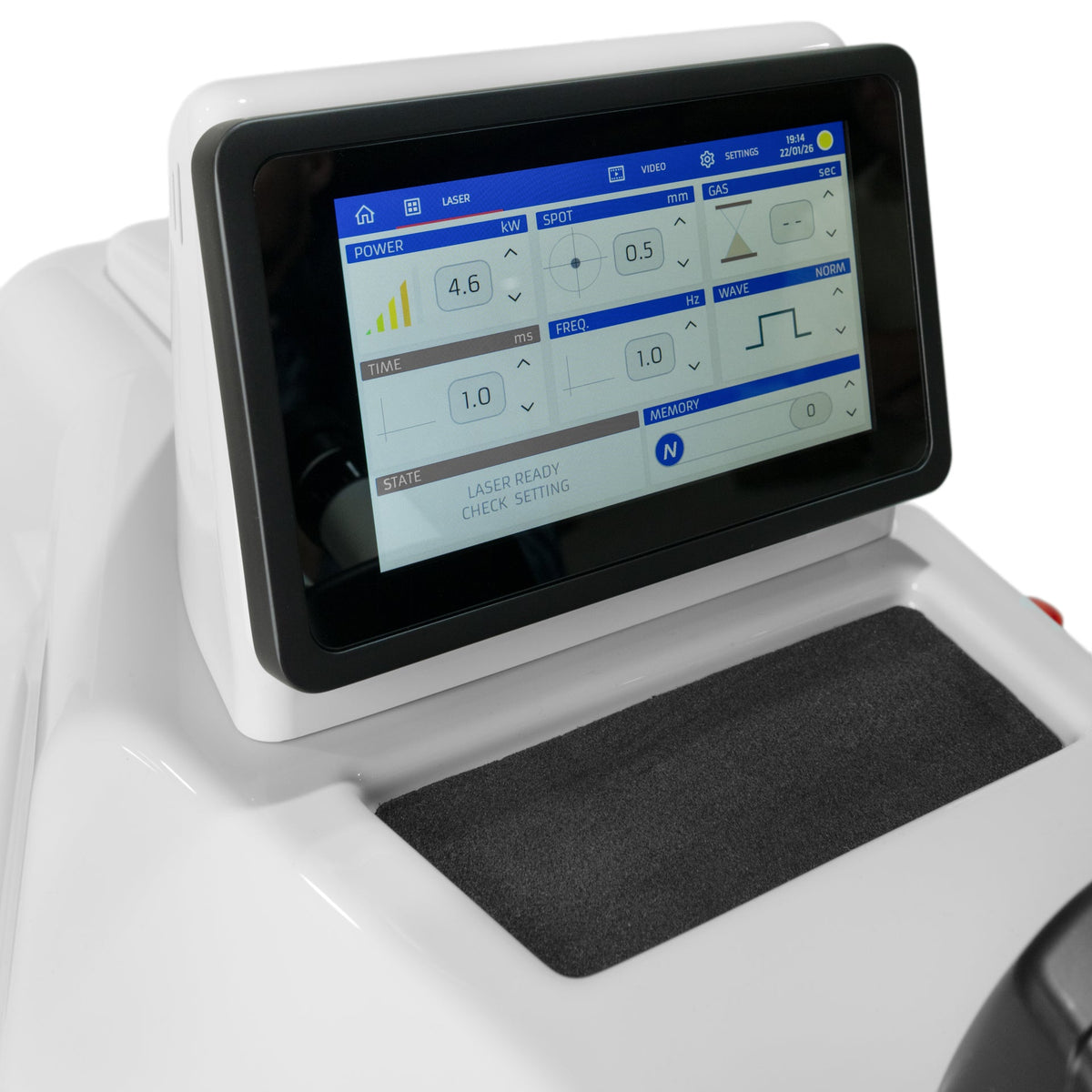

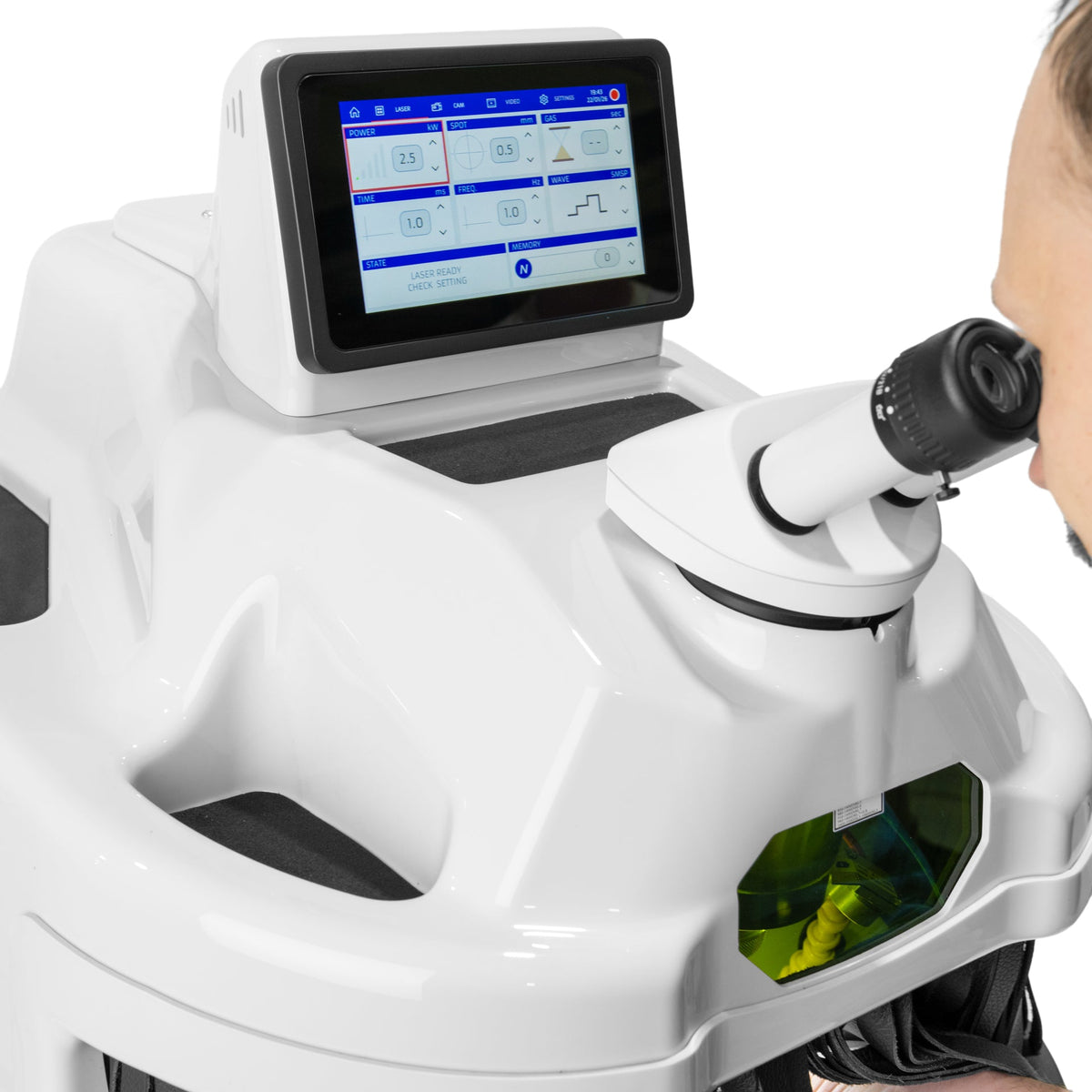

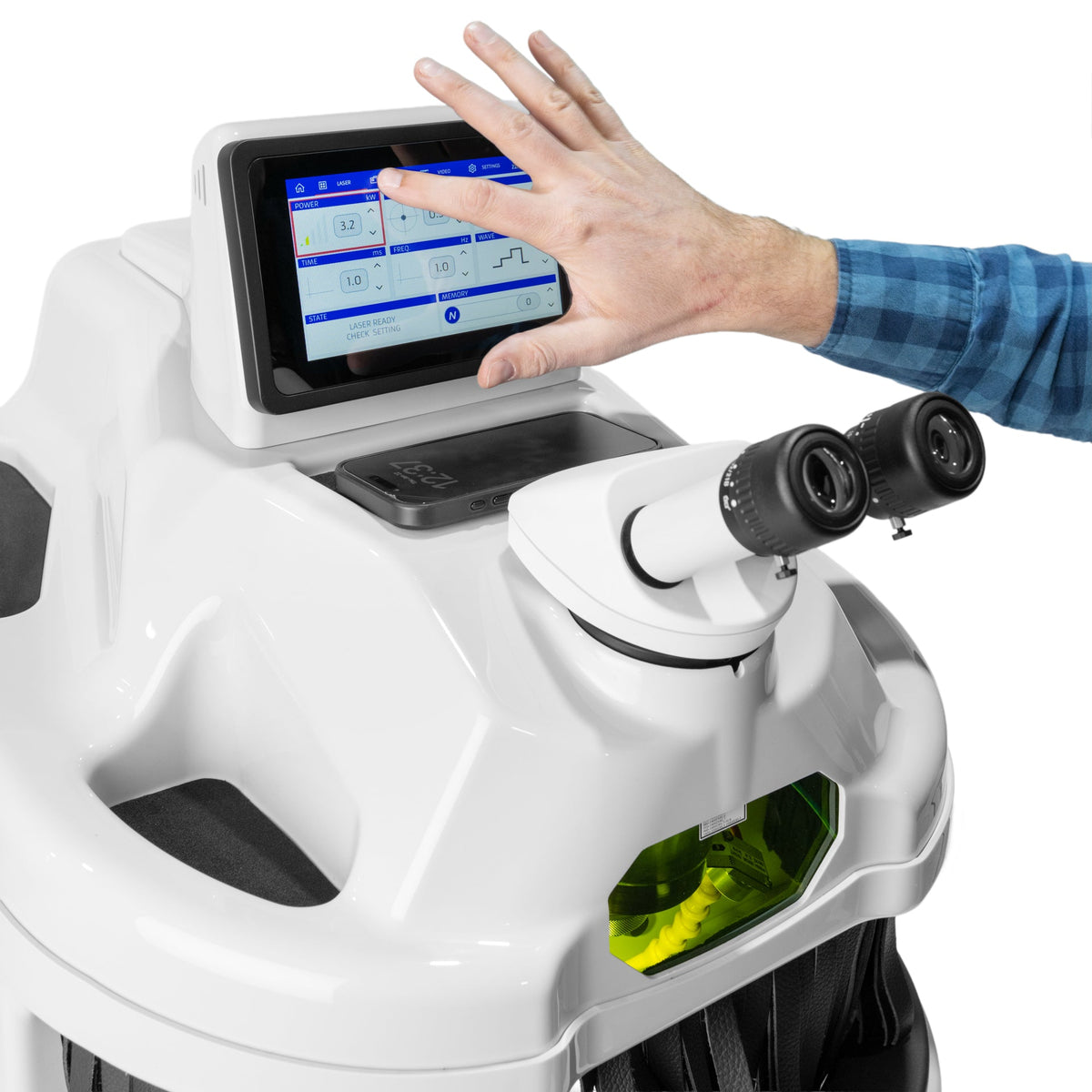

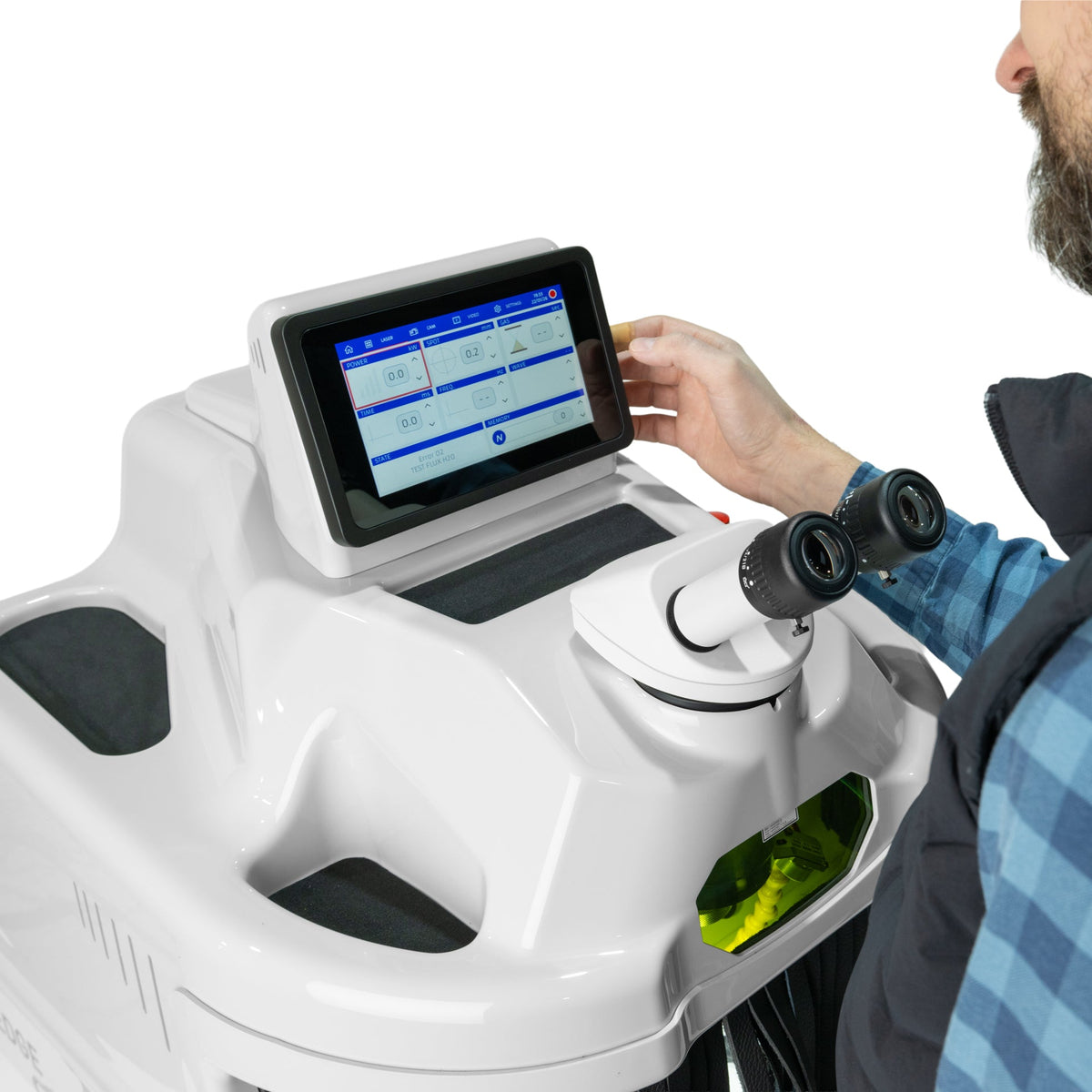

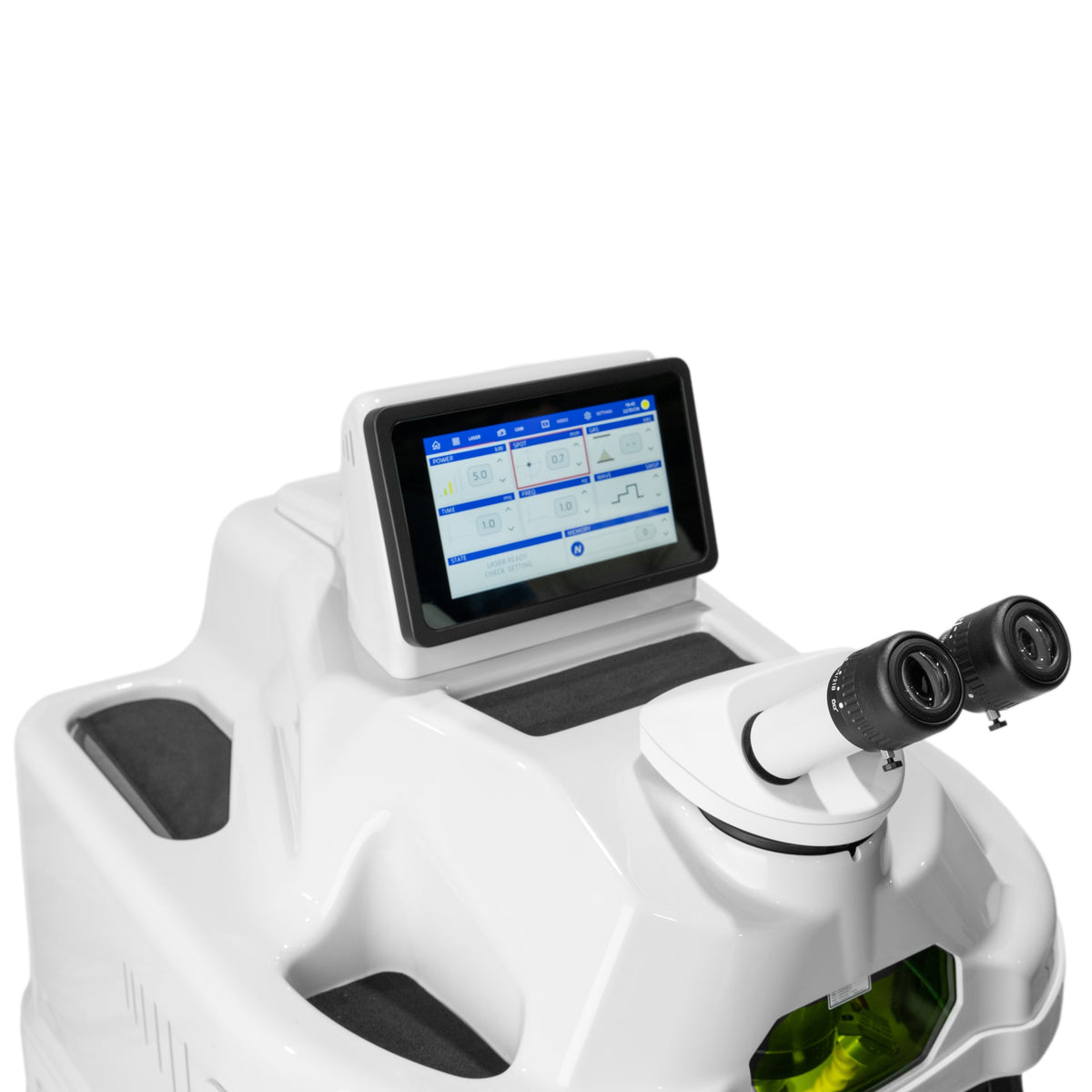

- 7" color touchscreen: fast navigation and clear parameter visibility

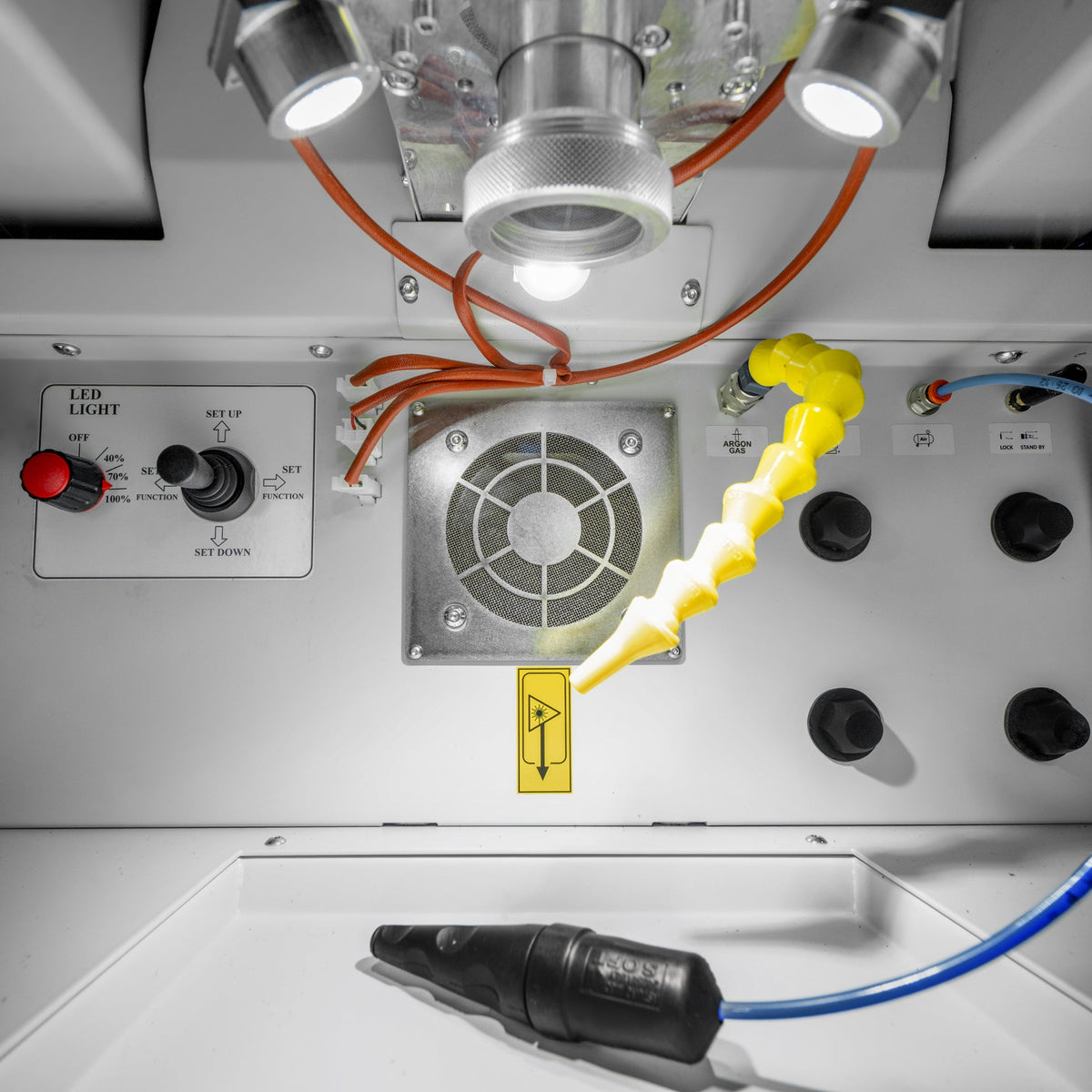

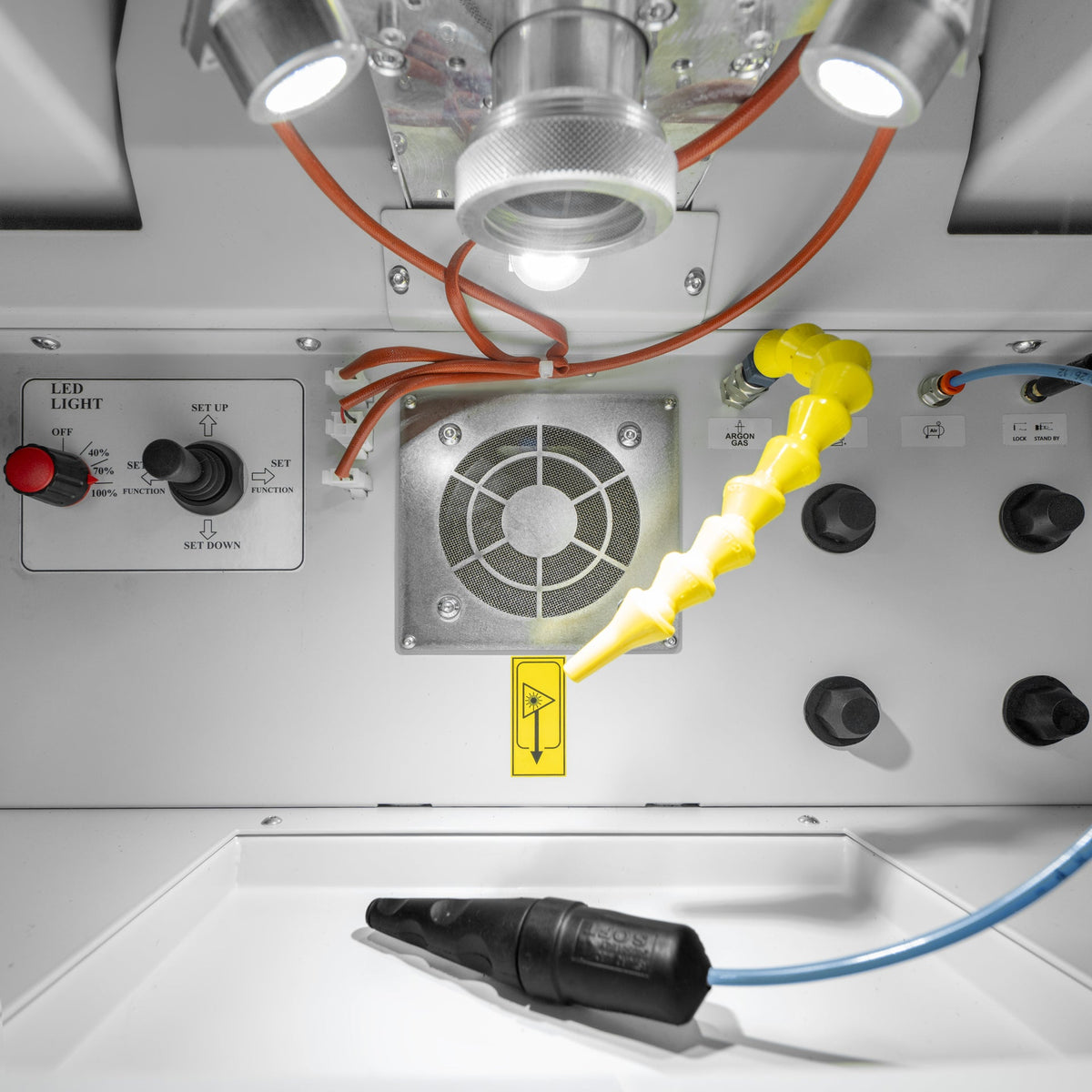

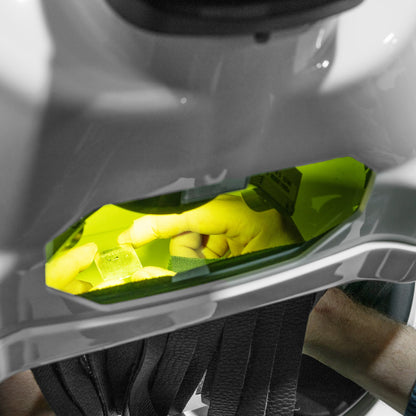

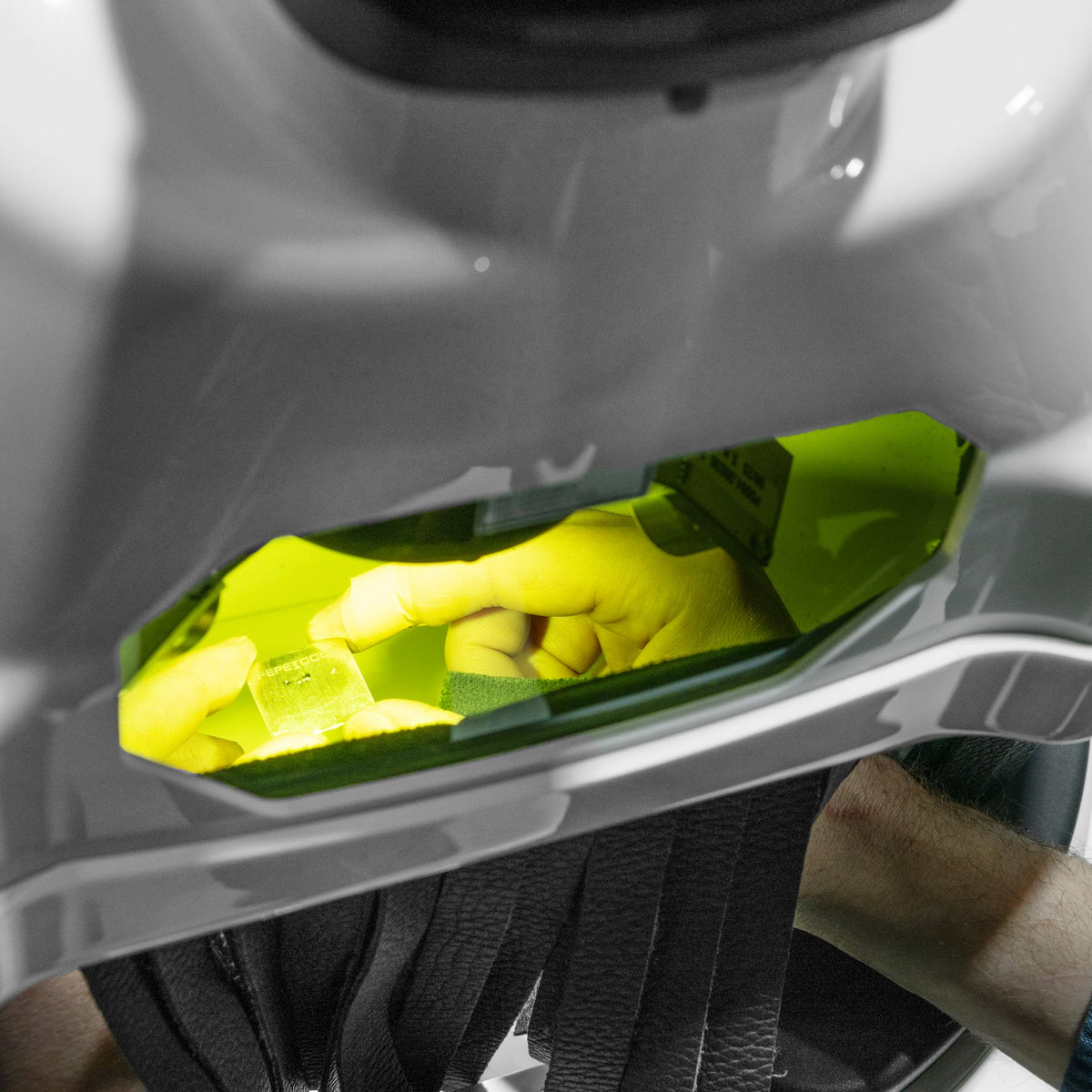

- Internal joystick chamber control: intuitive positioning and workflow efficiency
- Motorized spot adjustment: set spot diameter quickly and accurately
- Preset pulse shapes: choose from multiple wave programs for different tasks
- Program memory: save and recall settings for repeatability and training
- Integrated argon nozzle: supports cleaner welds with reduced oxidation
Technical Specifications
| Laser Source / Wavelength | Nd:Ce:YAG — 1064 nm |
| Maximum Energy | 225 J |
| Laser Average Power | 80 W |
| Laser Peak Power | 9 kW |
| Pulse Time | 0.1 – 25 ms |
| Pulse Frequency | 0.5 – 30 Hz |
| Spot Diameter | 0.1 – 2.0 mm (motorized) |
| Wave Programs | 7 preset pulse shapes |
| Storage Capacity | 100 saved settings |
| External Control | 7" color touchscreen |
| Internal Chamber Control | Joystick |
| Type | Desktop |
| Dimensions (L × W × H) | 700 × 557 × 555 mm |
| Weight | 38 kg |
| Argon Nozzle | Yes |
| Power | 110V ONLY (U.S. plug-and-play) — no transformer required |
What’s Included
- TauWeld EDGE Series 225J Laser Welder with Soft Spot Technology

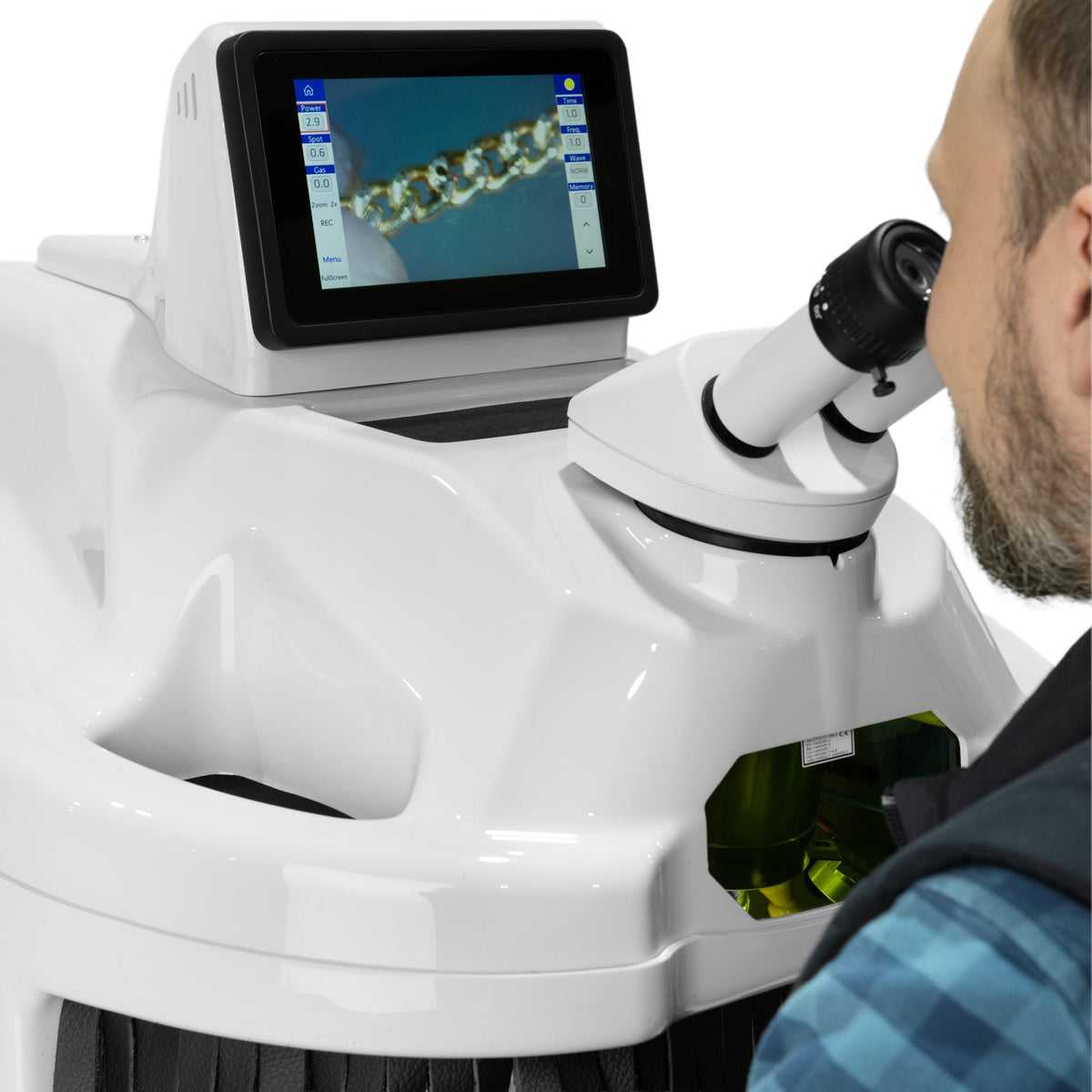

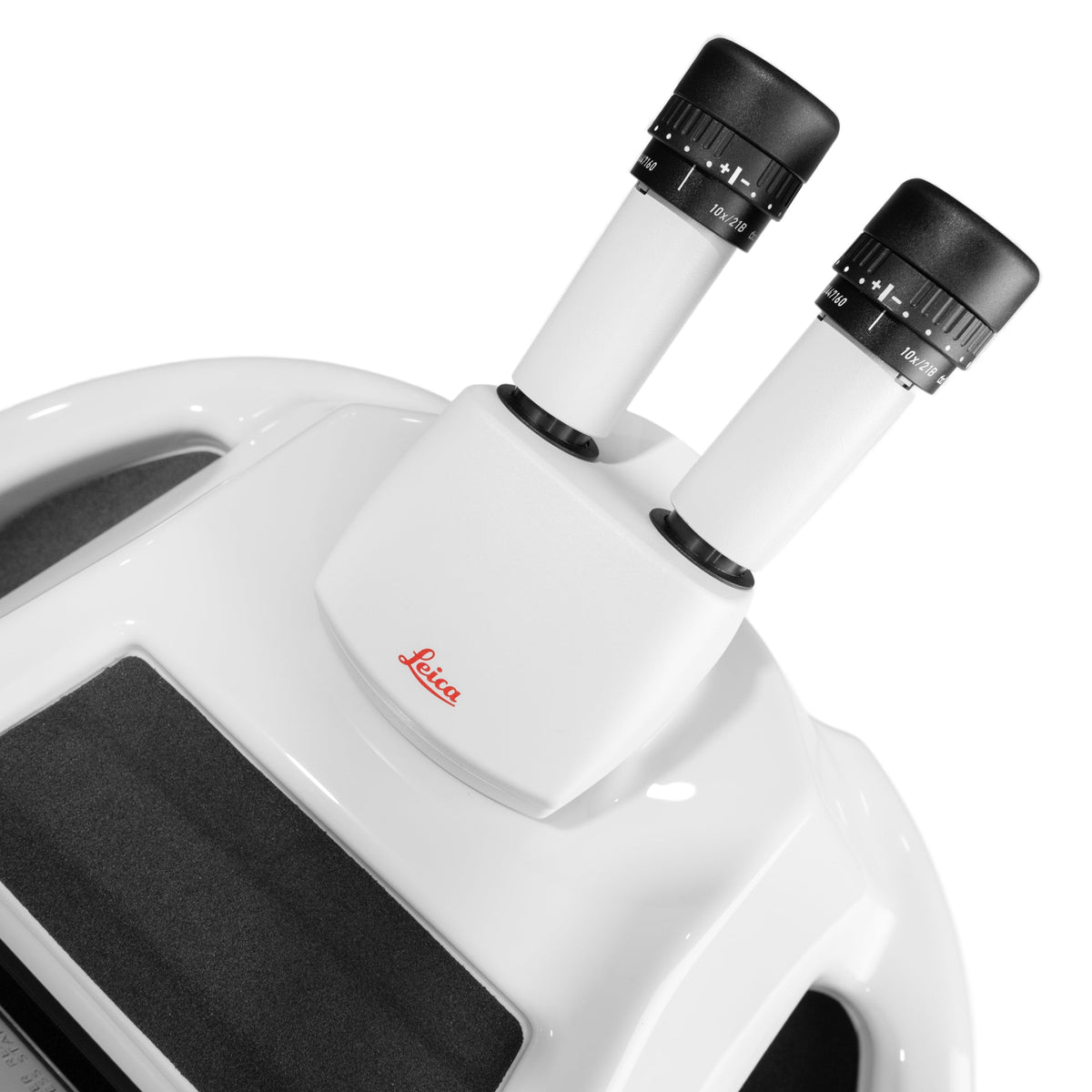

- Leica 10× stereomicroscope

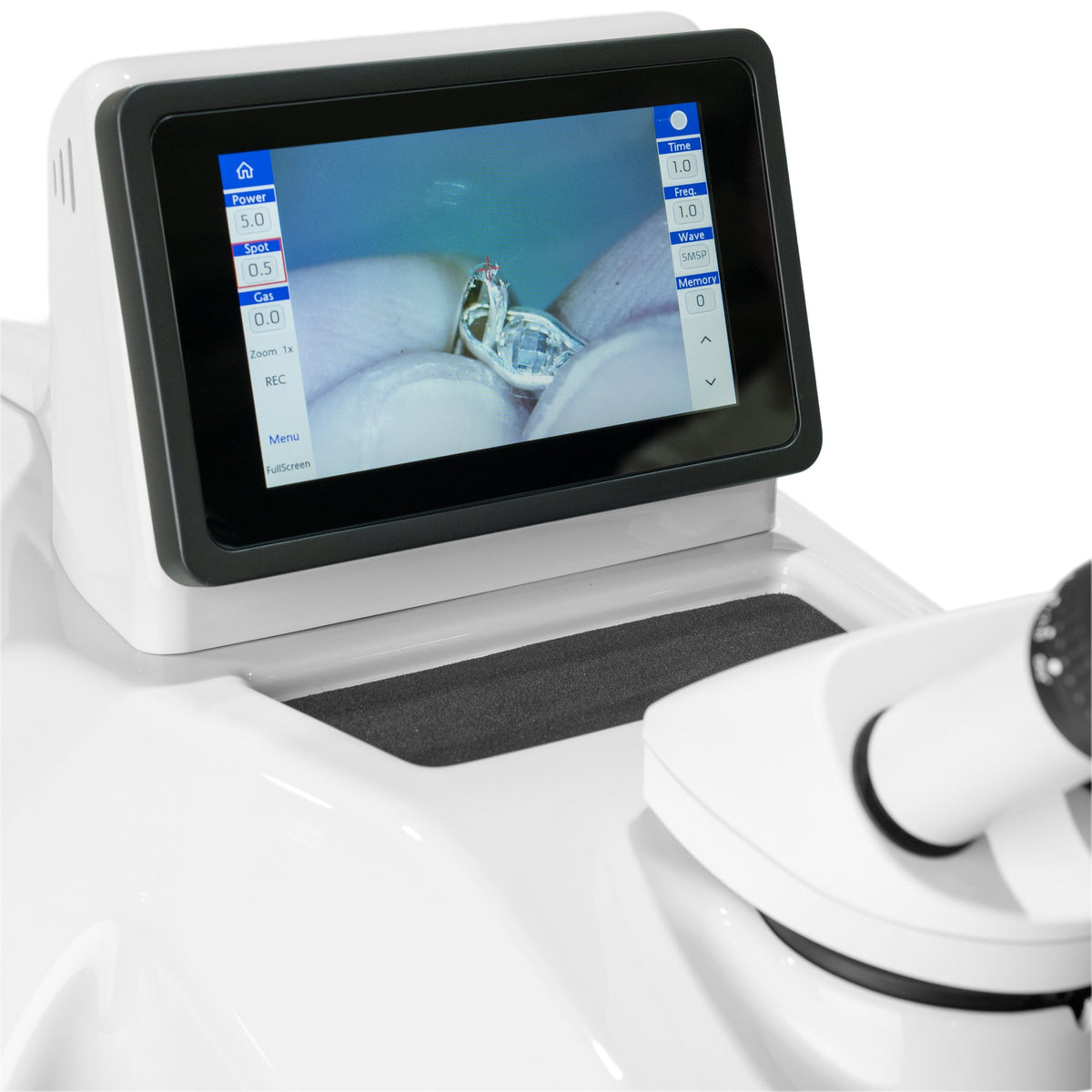

- Integrated camera system
- High-brightness LCD shutter
- Micro-Mode for fine jewelry including hollow pieces such as chain, etc.
- Integrated argon nozzle
Made in Italy. Backed in the U.S.
Manufactured in Italy for professional-grade fit, finish, and reliability.
Exclusively distributed in the United States by Pepetools — with knowledgeable support from a team that actually understands bench work.
FAQ
Does this require a transformer?
No. This model is 110V ONLY and is plug-and-play in the U.S.—no transformer needed.
What is Soft Spot technology?
Soft Spot shapes the beam for a smoother energy profile, helping deliver cleaner results, better surface finish, and more controlled penetration—especially on thin or delicate parts.
Who distributes this in the U.S.?
The TauWeld EDGE Series 225J is exclusively distributed in the U.S. by Pepetools.
Note: Specifications subject to change as part of continuous product improvement. For configuration questions, accessories, or workflow recommendations, contact Pepetools support.
