Dominator Pro
Dominator Pro
Couldn't load pickup availability
Share
Powerful. Rigid. Premium. Built for Serious CNC Work.
Deep dive into our FAQ: https://pwncnc.com/pages/dominator-pro-cnc-machine-faq
The PwnCNC Dominator Pro is our flagship CNC machine — designed for makers, small shops, and serious hobbyists who want a machine that feels solid, capable, and ready to grow with them.
This is not a lightweight desktop CNC trying to look industrial. The Dominator Pro was designed around rigidity, strength, and long-term upgradeability from the beginning. From its reinforced extrusion-based frame to its Masso Touch control system, generous Z-axis travel, large cable chains, and spindle-focused design, every major component was selected to create a premium CNC experience.
If you’ve outgrown entry-level machines, want deeper cuts with less chatter, or are building toward advanced workflows like rotary carving, dust collection, probing, tool setting, or automatic tool changes, the Dominator Pro gives you a serious platform to build on.
Limited Production Notice
The Dominator Pro is produced in small, limited batches so we can maintain quality, consistency, and attention to detail.
Availability may be limited between production runs. If the Dominator Pro is in stock or available for preorder, securing your machine now is the best way to reserve your place in the current batch.
What’s Included with Your Dominator Pro
The Dominator Pro base machine includes the core electronics, motion system, control system, and machine structure needed to build your premium CNC platform.
Included Features
- Masso Touch Control System with Advanced software tier
- Your choice of 2Nm or 3Nm stepper motors
- 36V Power Box with integrated switch for easy 110V / 220V source-power selection
- Z-axis stepper motor with integrated brake included free
- Massive 80mm spindle mount
- Dual-mount capable spindle carriage for future flexibility
- Flat-bed design with 2” front overhang, ideal for tool storage, tool setters, vertical workholding, and front-loaded projects such as dovetails
- Large cutting areas depending on machine size
- 8” vertical Z-axis travel with 2” adjustable mounting position, ideal for taller workpieces and deep rotary carving
- LED gantry lighting to illuminate the work surface
- 18x50 cable chains with room for coolant lines, ATC tubing, spindle wiring, and accessories
- 1 year of CarveCo Maker included free
Available Machine Sizes

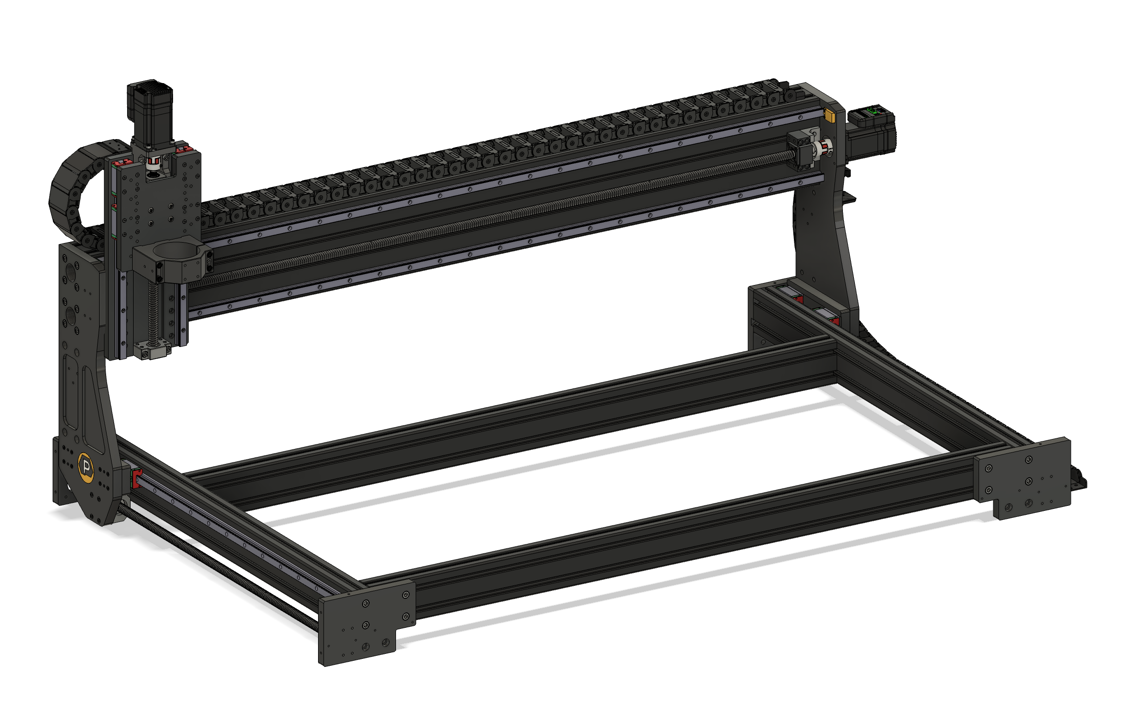

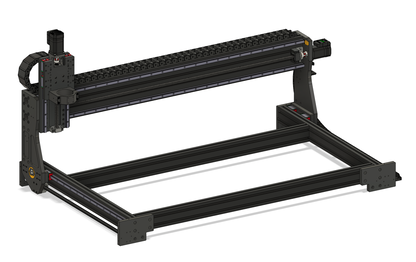

2x4 Dominator Pro
Approx. cutting bed area: 50” wide x 24” deep
Plus 2” front cutting overhang

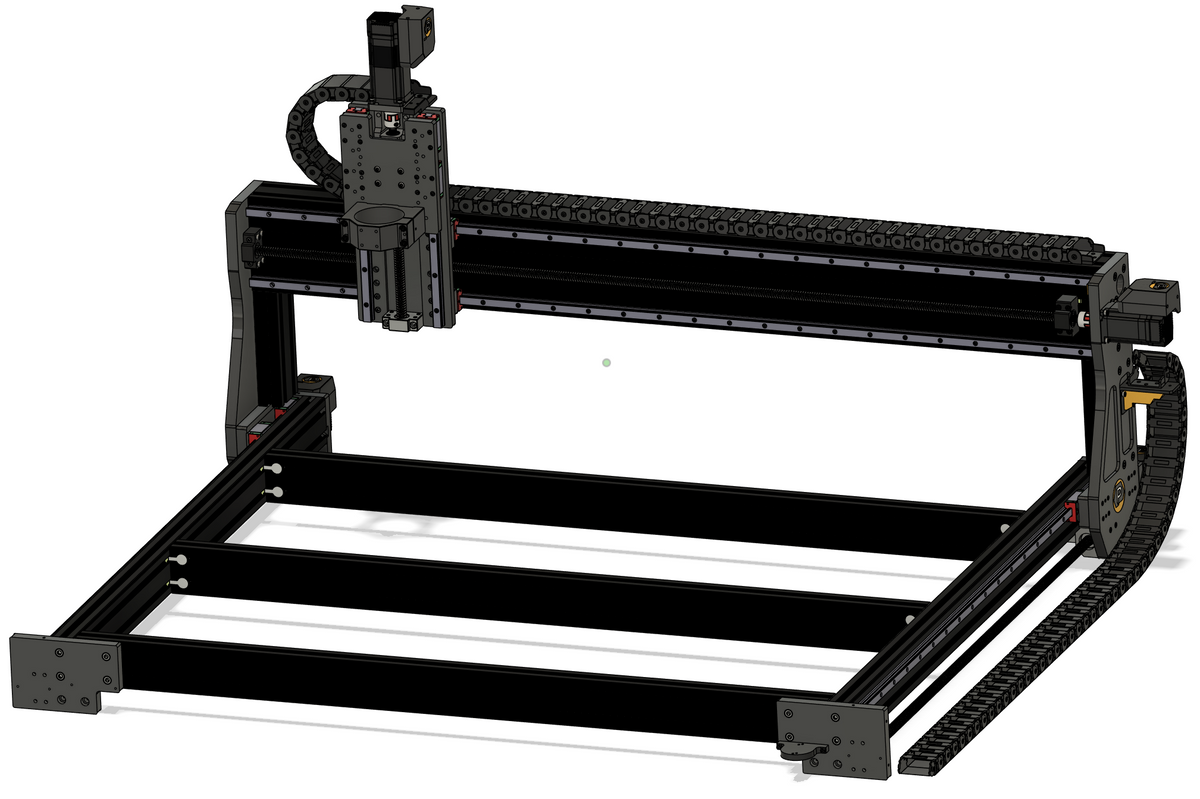

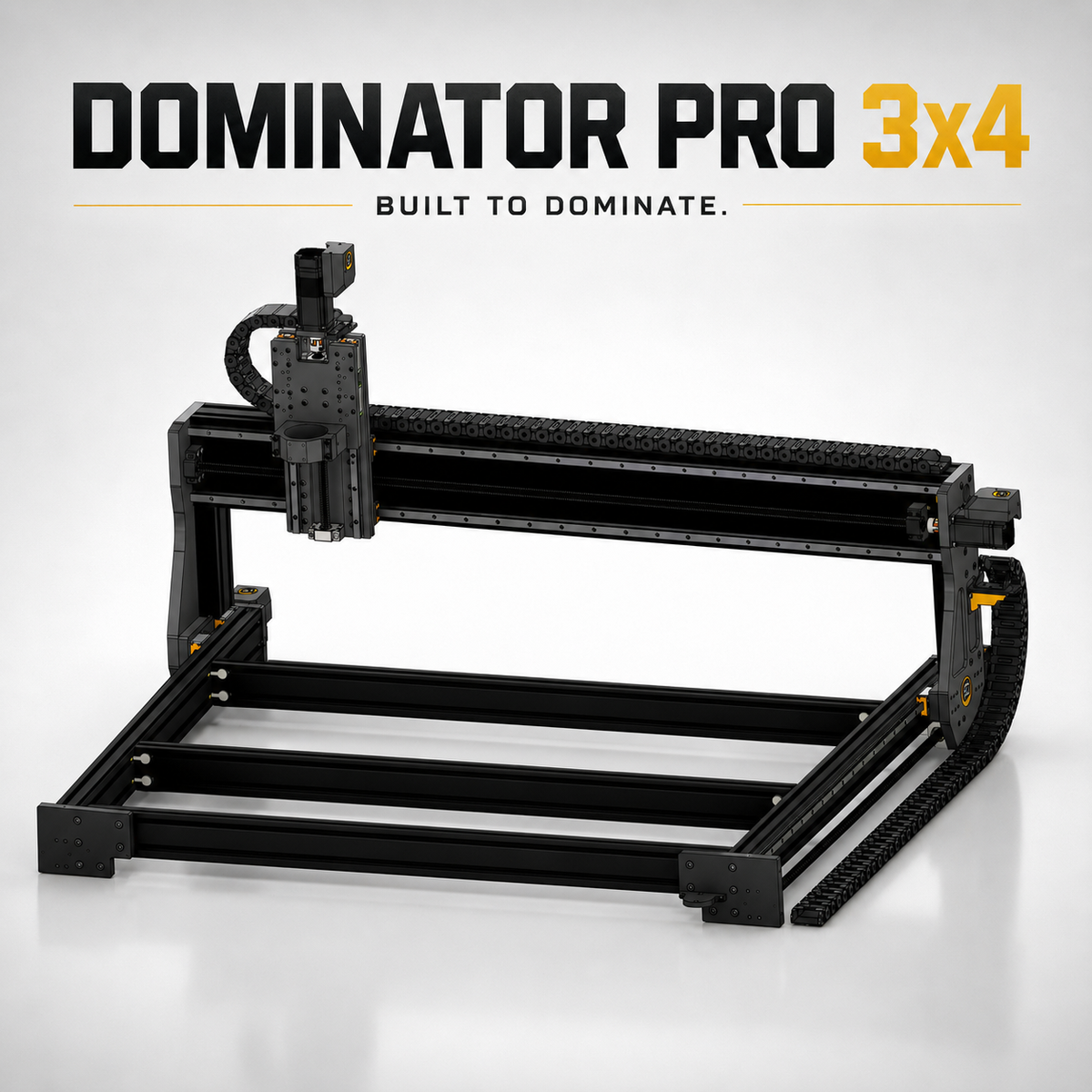

3x4 Dominator Pro
Approx. cutting bed area: 50” wide x 36” deep
Plus 2” front cutting overhang

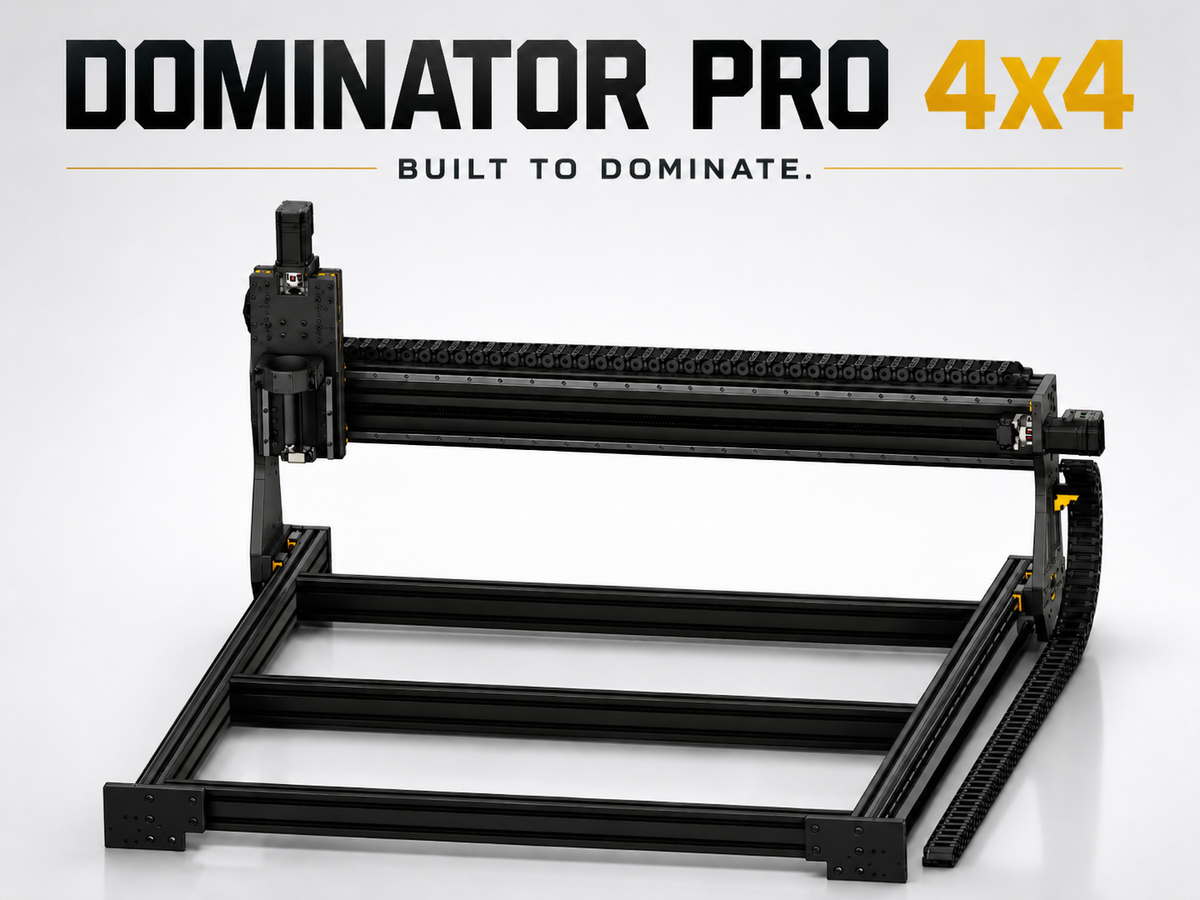

4x4 Dominator Pro
Approx. cutting bed area: 50” wide x 48” deep
Plus 2” front cutting overhang
Drawings Available: https://support.pwncnc.com/kb/article/544-dimensions-dominator-pro/
What You’ll Need
This product entry is for the base-model Dominator Pro machine. Some items are sold separately depending on how you want to complete your setup.
You may also need:
- CNC end mills and router bits
- A DIY work table or our optional Legs Kit
- Spindle or ATC spindle system
- Dust collection setup
- Workholding accessories
- XYZ Probe, tool setter, MPG, or other setup accessories
Power Requirements
- 2Nm setup: 110V 20A circuit
- 3Nm setup: 110V 20A circuit minimum, but performs better on 220V 20A
- Spindle / ATC spindle: separate 110V or 220V circuit depending on spindle configuration
See more: https://support.pwncnc.com/kb/article/581-power-supply-details/
Optional Add-Ons & Upgrades
The Dominator Pro was designed as a premium platform that can grow with your shop. Choose the upgrades that match the way you plan to use the machine.
Legs Kit
Ultra-rigid frame support system with leveling feet. Recommended if you do not already have a suitable work table.
Gantry Rigidity Upgrade
Adds vertical extrusion support for increased gantry stiffness.
Bed Structural Upgrade
Adds additional front/back cross members for improved bed support and reduced sag.
Bed Rigidity Upgrade
Adds extra left/right bed reinforcement for heavier workholding, demanding projects, and aluminum carving.
5th Leg Add-On
Available for the 4x4 machine size. Adds mid-bed support for larger setups.
Second Spindle Mount
Adds support for heavier water-cooled spindle configurations, including advanced ATC setups. Not required for Air-Cooled ATC's.
Rotary / 4th Axis
Supports rotary projects up to approximately 15” diameter and 33” length, making it ideal for deep rotary carving and larger turned projects. Largest capacity does require minor bed frame adjustments.
Build Along with Us
Follow our Dominator Pro Build Series on YouTube to see assembly, wiring, tuning, and setup in real time.
This series is especially helpful for customers who want to understand the machine before it arrives, plan their workspace, or follow along during assembly.
Watch the Dominator Pro Build Series
Recommended Accessories
Complete your Dominator Pro setup with accessories designed to make daily CNC work cleaner, faster, and more organized.
Dominator Pro ATC Workflow Bundle
Our Tool-Cups are designed to help organize tooling at the front of the machine and support a cleaner, more efficient workflow around tool changes, dust collection, and job setup.
CNC Bits & End Mills
Choose from our CNC bits, carving tools, and Cyclone Bits to get the most out of your Dominator Pro.
Built for the Next Step in Your CNC Journey
The Dominator Pro is for the customer who wants more than “good enough.”
It is for the maker who wants a machine that feels planted, cuts confidently, supports serious upgrades, and can become the center of a growing CNC workflow. Whether you are building furniture, signs, production parts, rotary projects, or preparing for ATC workflows, the Dominator Pro gives you a rigid and capable foundation to build from.
Powerful. Rigid. Premium. Built to perform.
