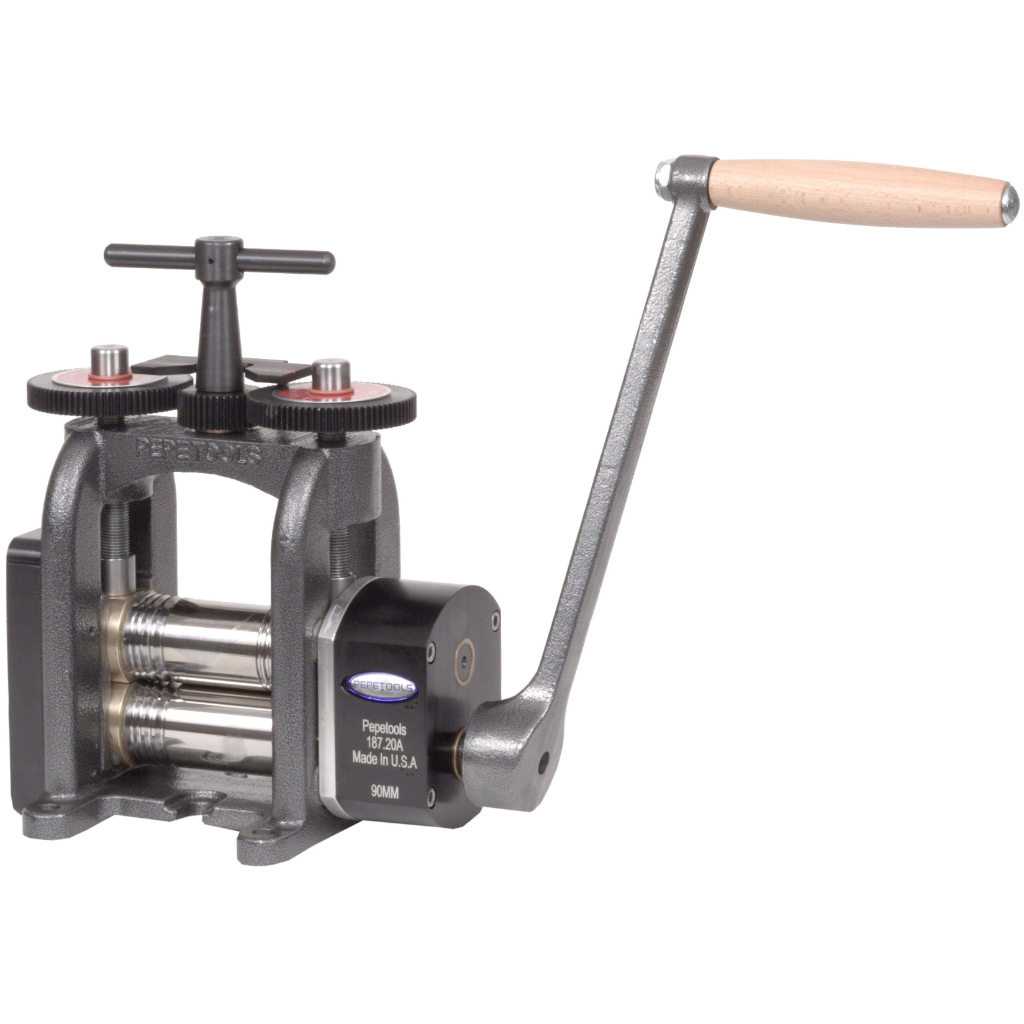

90MM Combination Rolling Mill, Ductile Frame
90MM Combination Rolling Mill, Ductile Frame
Regular price
$655.00 USD
Regular price
Sale price
$655.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Share
- Gear ratio 4:1
- Roller width 90 mm
- Roller diameter 42.6
- Maximum opening 5 mm
- Flat area (+/- 0.01mm) 50mm
- Square wire (+/- 0.01mm) : 1.5, 2.0, 3.0, 4.0
- Ring shank - half round ellipsis: 2.5 x 1:3 x 1.25 ; 4 x 1.5
- Capable of producing metal foil as thin as .001"
- All models equipped with 4:1 reduction gear box
- Custom designed heavy duty packaging
- Precision hobbed gears from solid steel - no casted gears
- High strength housing
- Custom designed maintenance free bronze bushings
- Induction hardened in strategic areas to 65HRC hardness
- Polished and machined rolls to achieve a mirror finish
We have started utilizing a unique hardening procedure which allows us to market superior rollers that will perform beautifully.Our rollers are made from a high quality carbon steel alloy that offers excellent wear resistance and the outer 3mm of the rolls are hardened to 65 HRC for superior deformation resistance.
